Product Overview

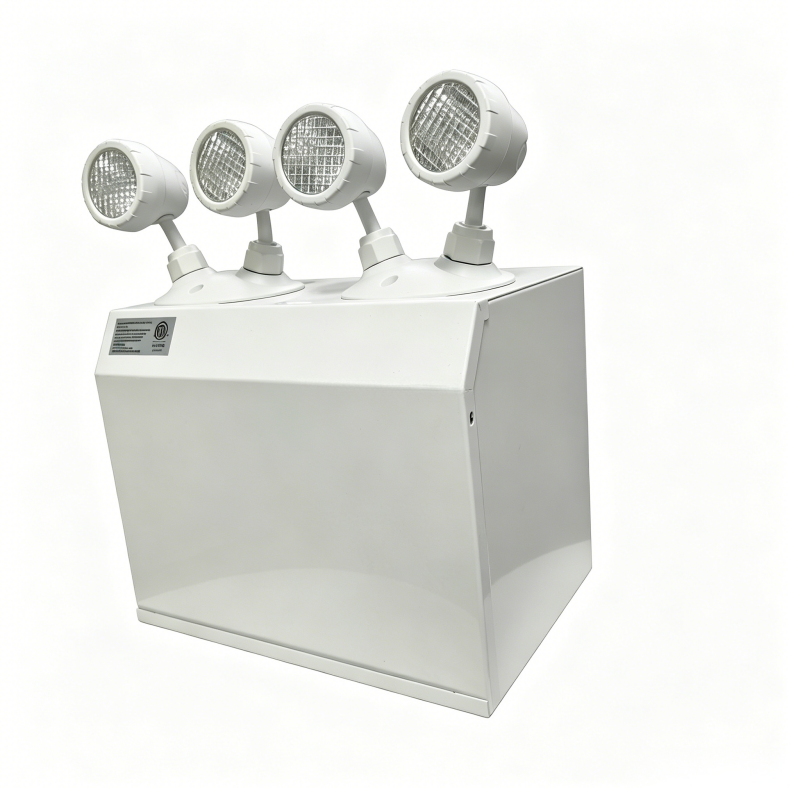

The LH-06H is a high-performance emergency battery-powered generator with a rated maximum output power of 72W. It is compatible with 24V maintenance-free sealed lead-acid batteries. The standard emergency operation duration is 30 minutes, and the full-load discharge duration can reach up to 24 hours. The entire machine is compatible with a wide voltage input range of 120/347VAC, has passed ETL performance certification, has a protection level suitable for humid environments, is compatible with dual-path universal wide-voltage LED remote emergency lamp heads on the top, supports side-mounted optional configuration, and is widely applicable to emergency lighting backup power supply scenarios in commercial and industrial settings.

Core Features

1. Universal wide-voltage power supply, compatible with North American power grid

Supports 120/347VAC 60Hz AC input. The voltage specification can be switched on-site. It is compatible with mainstream commercial power supply systems in North America. No additional transformer modification is required.

2. 72W high-power stable output, long emergency endurance

The maximum DC emergency output is 72W. The standard emergency duration is 30 minutes. The full-load discharge lasts for over 24 hours, meeting the lighting requirements for long-term power outages.

3. 24V maintenance-free storage battery, zero-cost operation

Built-in 24V sealed lead-acid battery. The design is fully maintenance-free throughout the process. It only takes 24 hours to fully charge. It is equipped with a current-limiting fully automatic charging system. The battery life is more durable.

4. Specialized body for humid environments, sturdy shell

The entire machine adopts a 18# thick and integrated molded shell. The waterproof and moisture-proof structural design is adopted. It can be directly installed in humid areas (garage, equipment room, storage area, etc.).

5. ETL authoritative performance certification, compliant commercial standards

The entire machine has passed the professional performance testing certification of ETL. It complies with the commercial electrical safety regulations in North America. Commercial projects such as shopping malls, office buildings, and factories can directly select it.

6. Dual LED remote emergency lamp head, flexible installation

It is compatible with the top-mounted dual universal wide-voltage LED remote lamp head. The body is reserved for general openings, cable trough holes, and hanging slots. It supports standard top installation or side optional installation. The wiring methods are diverse.

7. Fully solid-state intelligent circuit, multiple safety protections

It is equipped with an efficient fast-charging precision control system. It has functions such as circuit lock, low-voltage protection, and current limitation. It is equipped with a manual test button and power supply/charging status indicator lights. Fault visualization self-checking is available. The operation is simple.

Electrical Parameters

- Input Voltage: 120/347VAC 60Hz (field selectable)

- Input Rating: 72W, 600mA / 200mA

- Max Emergency Output: 72W 24VDC

- Standard Emergency Duration: 30 mins; Full-load Discharge Time: ≥24 hours

- Full Charging Time: 24 hours

- Battery: 24V Maintenance-free Sealed Lead-acid Battery

- Operating Temperature: -10°C ~ 55°C

Mechanical Specifications

- Shell material: 18 Gauge thickened box body

- Overall Dimension: 334mm × 258mm × 218mm

- Standard Accessories: 120VAC Line Cord, Dual LED Remote-DUAL Lamp Heads

- Mounting: Standard Top Head Mounting, Optional Side Mount

- Cabinet Structure: Universal spider knockout pattern, keyhole mounting slots, multiple conduit entry knockouts

Circuit Design

- Fully automatic current-limited fast charger

- Momentary push button test switch

- Dual diagnostic LEDs (AC Power On / Charging Status)

- Line latched protection & low voltage cut-off protection

- Full solid-state circuit design for stable operation

Certification

ETL Performance Certified

Application Scenarios

- Commercial complexes, office buildings & damp underground parking lots

- Industrial plants, mechanical equipment rooms & logistics warehouses

- Public facilities, corridors & fire escape emergency lighting systems

- North America commercial emergency backup power projects
