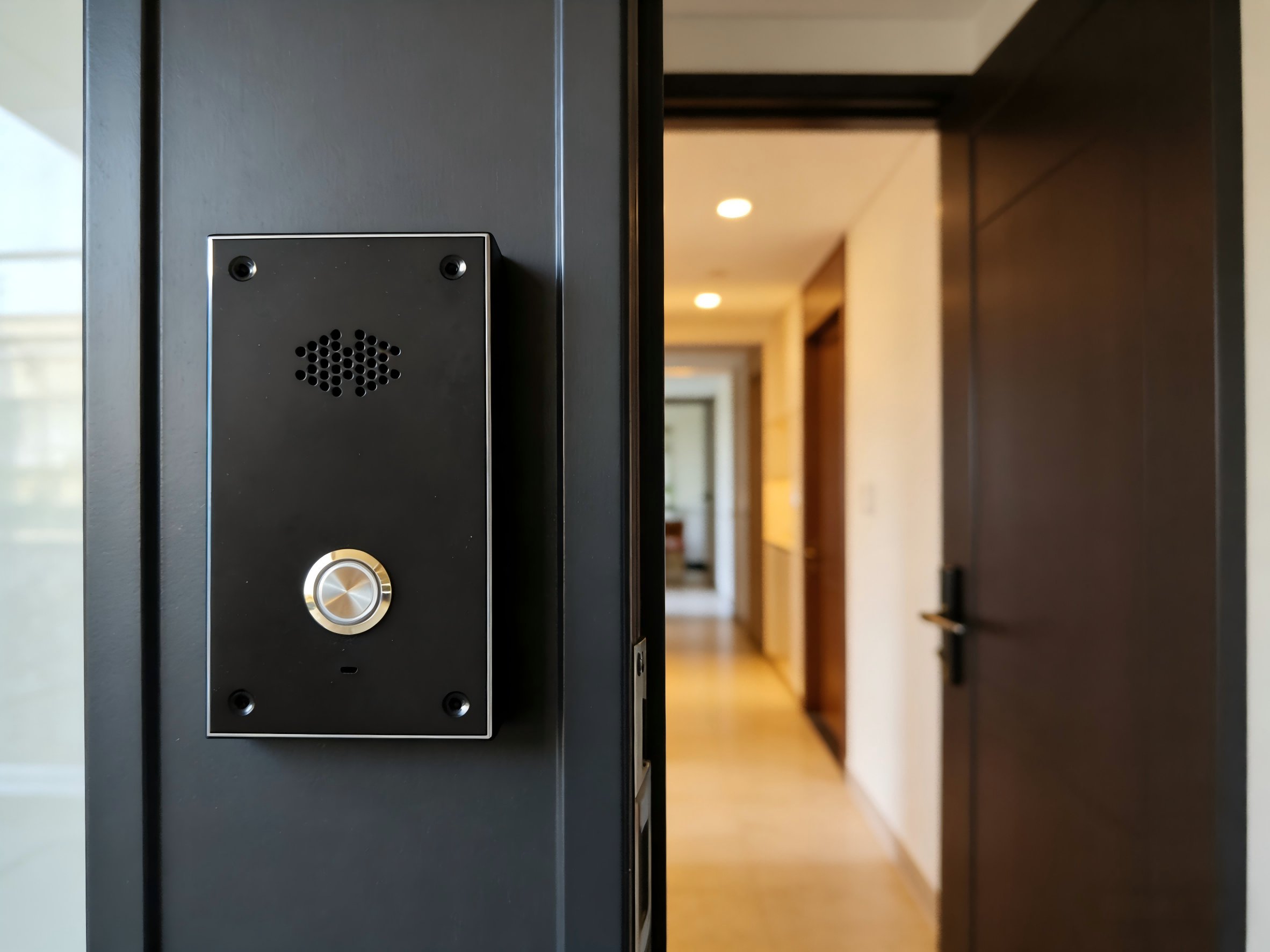

Wireless 4G door phone for Villa smart doorbell wireless doorbell
work with SIM,NO Wire
Save construction cost more than 80%,No need professional,finish installation by own
·Aluminum alloy panel and waterproof;
·Insert SIM,work with phone;
·No need indoor monitor,no need wires;
·Open the gate from anywhere,no distance limitation;
·Support 3 users and an admin phone numbers;
·Support SMS functions;
·Relay outputs(NC/NO),Option 1 or 2 doors
·Working voltage:DC12V-15V;
·Surface mount;

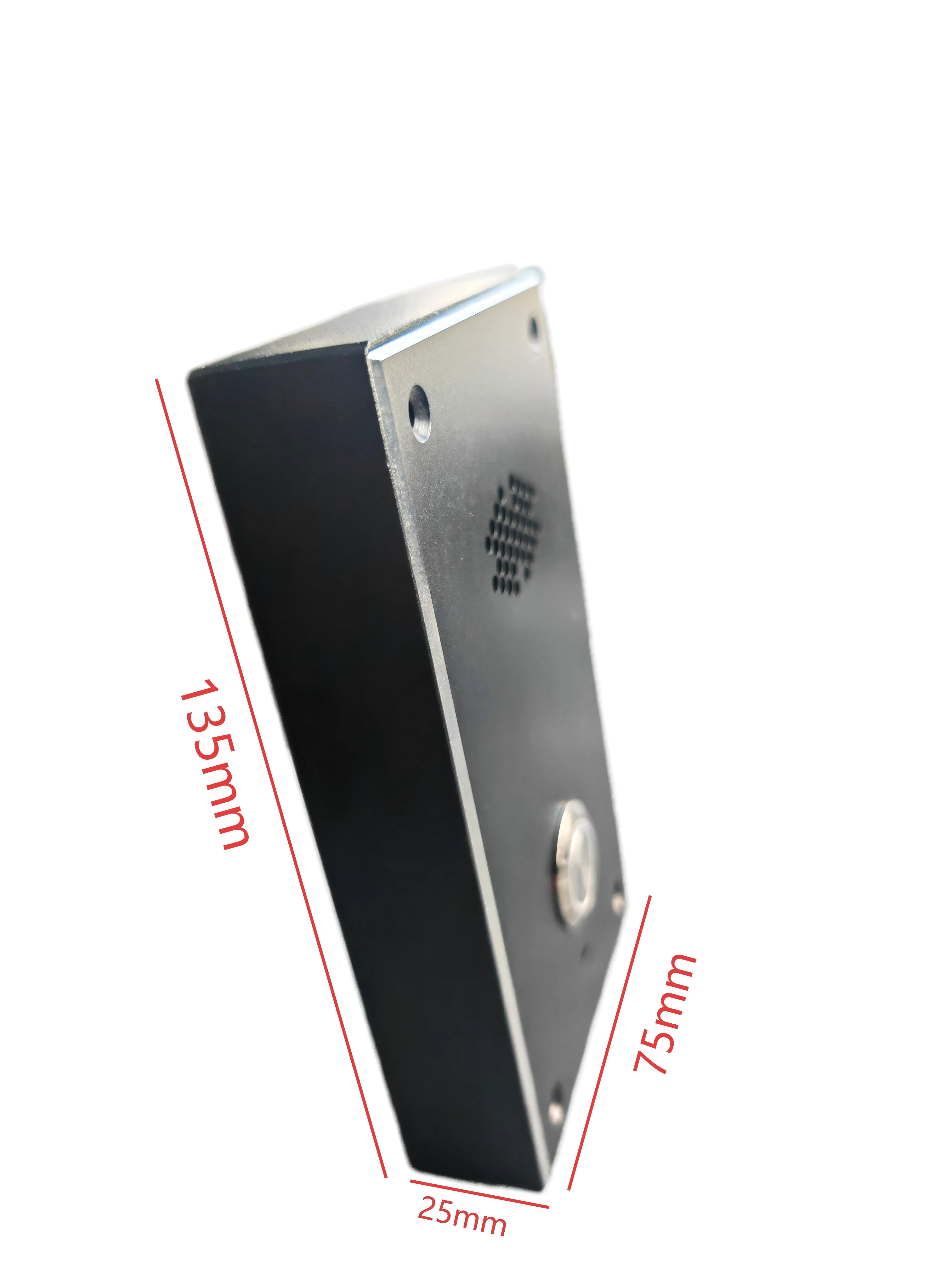

·Dimension:135*75*25mm
·Frequency range: UMTSHSDPA:Quad band,850/900/1900/2100MHzGSM/GPRS/EDGE:Quad band,850/900/1800/1900MhzOnly support GSMnetwork system,do not support CDMA.
PATENT NO.:ZL201520388323.2
work with SIM,NO Wire
Save construction cost more than 80%,No need professional,finish installation by own
·Aluminum alloy panel and waterproof;
·Insert SIM,work with phone;
·No need indoor monitor,no need wires;
·Open the gate from anywhere,no distance limitation;
·Support 3 users and an admin phone numbers;
·Support SMS functions;
·Relay outputs(NC/NO),Option 1 or 2 doors
·Working voltage:DC12V-15V;
·Surface mount;
·Dimension:135*75*25mm
·Frequency range: UMTSHSDPA:Quad band,850/900/1900/2100MHzGSM/GPRS/EDGE:Quad band,850/900/1800/1900MhzOnly support GSMnetwork system,do not support CDMA.
PATENT NO.:ZL201520388323.2
Outdoor station
Support Up to 1-Administrator + 3-User Phones.
Support Any Phone [Any Mobile Or Land-line Phone Regardless Of Region].
No any installation or wiring required for indoor apartment.
inbuilt Quad-band 850/900/1800/1900Mhz GSM module, 3G & 4G is optional;
Secure-using caller ID for identification, unknown callers are ignored.
Support SMS, PC software to edit information for resident.
Relay Outputs (NC/NO).
User friendly design, alloy outer case and enduring lifespan;
Indoor monitor
All cell phone with Android or iOS systm is available;
Iwatch with GSM card and number keyboard is available;
Ipad with GSM card is availabl
| Name: | 4G Wireless Intercom System for Villa |
| Model: | DZ-3406C |
| Function: | Unlock/Intercom/SMS Fucntions/Unlock the door under talking by cellphone/unlock the door through message by cellphone/ input resident data from cellphone message/ adjust unlock time |
| Body Material: | Aluminum alloy panel, Water proof |
| Power Output: | DC12-15V |
| Transmitting power: | Better than -108dBm |
| Working current: | Standby <100MA |
| Working temperature: | -20 ~ +50 degree |
| Frequency Range: | GSM: Quad band 850/900/1800/1900Mhz GSM GPRS Module inside (Not CDMA) |
| 3G & 4G UMTS/HSDPA Modules are optional.; | |
| Installation: | Surface mounted with waterproof cover, or flush mounted |
| Waterproof Rate: | IP55 |
| Dimension (WxHxD): | 135*75*25 mm |
| Controlled by two relays | Open either door 1 or door 2 |
| Aluminum alloy panel | Durable |
-
CUID copies the IC card, allowing for repeated reading and writing of the card. IC Card (13.56 MHz)
-
ID Card
-
IC/ID Card Used for community access cards, hotel door lock room cards, making membership cards and custom keychain chip sensing cards
-
Used for community access cards, hotel door lock room cards, making membership cards and custom keychain chip cards
-
2 wired video intercom system 7inch screen indoor monitor
-
4G intercom system, villa intercom system, supports unlocking via mobile phone or SMS, equipped with nameplate, made of stainless steel material
-
HD outdoor monitor for Villa
-
Wireless 4G Villa Doorbell
-
4G Video Doorphone for Villa
